ProSetM Mobile Automatic Airconditioning Machine
- General Details
- Model Specifications
- Documents
General Details

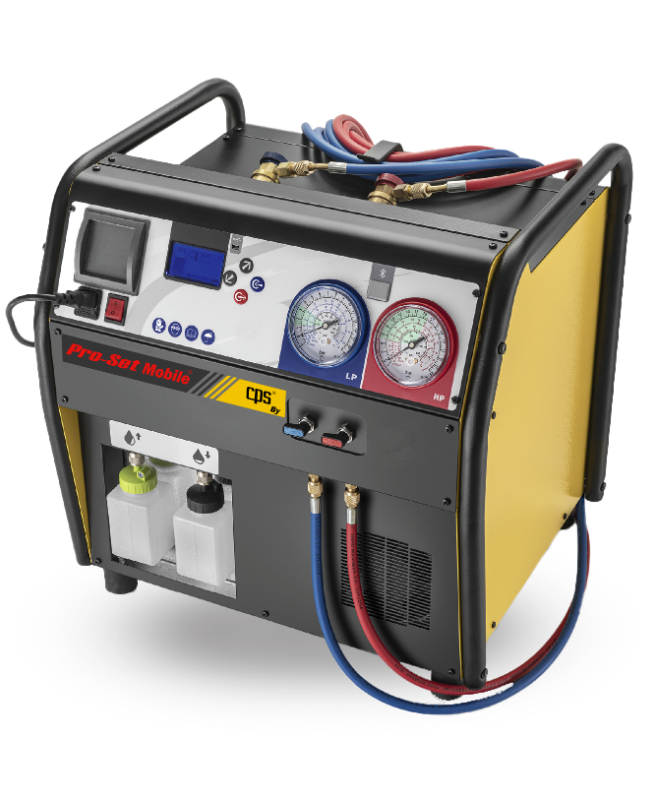

The CPS ProsetM professional airconditioning station is manufactured to a robust and compact design making it ideal for mobile applications. It can be stored in a vehicle trunk or the back of a 4X4 ute to perform maintenance on A/C systems direct on site.
This series is fully automatic and come in both R134 and R1234yf models, they are equipped with all the main fucntions for the A/C serice in workshops or mobile applications and can be used with a 12v inverter as well.
The unit comes hybrid compatible and comes standard with Bluetooth capabilities and the Oksygen+ app and an impressive 2 year warranty.
Key Features
- R134a & R1234yf models
- Fully automatic working cycle
- 50 l/min vacuum pump
- 0.2Mbar/20Pa ultimate vacuum
- 8.7 Kg tank capacity
- +/- 5 g scale accuracy
- Heater belt
- Automatic air purge
- Automatic oil injection with scale
- Optional support trolley (single and dual)
- 7.5m hoses
- 128*64 graphic LCD display
- 10cc compressor
- Printer via App or Optional
- Database
- Bluetooth App
- Optional 12V power supply
- Optional Hybrid Bottle (CSAHK)
- Optional Nitrogen Leak Check (CSANITRO)
- 220V 50Hz power supply
Model Specifications
| PART NO. | REFRIGERANT | WIDTH | DEPTH | HEIGHT | WEIGHT |
|---|---|---|---|---|---|
| ProsetM 134A | R134A | 55cm | 59cm | 68cm | 46/53kg |
| ProsetM 1234YF | R1234YF | 55cm | 59cm | 68cm | 46/53kg |
