500-4006P | MotorVac DieselTune™ 4000
- General Details
- Specifications:
- Adapters
- Documents
General Details
DieselTune is a 2-line cleaning system that connects to the engine through OEM specific adapters. DieselTune passes a concentrated mixture of MotorVac cleaning detergent and diesel fuel through the components of the fuel system while the engine is running. The system removes organic and inorganic fuel deposits that build up in fuel injectors, injection pumps and combustion chambers. Carbon, gum and varnish deposits in the entire upper engine are dissolved and removed during combustion, then passed through the exhaust.
- Variable pressure for diesel lift pumps up to 100psi or 6.8 bar
- Safely dissolves carbon deposits on diesel engines through exclusive soak mode
- Microprocessor-based controls for automatic operation
- Automatically maintains correct pressure and flow for worry-free operation
- Safe for use in all diesel engines, including heavy-duty truck applications
- Patented microprocessor for ease of use
- Lowers exhaust opacity and harmful emissions
- Automatically maintains correct pressure and flow for worry-free operation
- Exclusive soak mode for deep cleaning of the fuel delivery system
- Restores fuel economy and horsepower
- Extends fuel injector and fuel pump life
Specifications:
Model | DieselTune™ |
Input | 12 VDC 6A |
Machine Dimensions | |
Height | 99 cm (39”) |
Width | 53.3 cm (21”) |
Depth | 43 cm (17”) |
Carton Dimensions | |
Height | 104 cm (41”) |
Width | 61 cm (24”) |
Depth | 48 cm (19”) |
Shipping Weight | 36.3 kg (80 lbs) |
New Fluid Capacity | 17.4 L (4.6 gal) |
Waste Tank Capacity | N/A |
Length of Power Cord | 3 m (10 ft) |
Length of Hose | 3 m (10 ft) |
Warranty | One Year |
Adapters
Part No. | Description | Availability |
---|---|---|
060-3100 | Inlet Male TBI & PFI | Included in Light Truck Kit # 200-3117 |
060-3105 | Inlet Female TBI & PFI | Included in Light Truck Kit # 200-3117 |
060-3300 | Outlet TBI & PFI GM | Included in Light Truck Kit # 200-3117 |
060-3305 | TBI & PFI F | Included in Light Truck Kit # 200-3117 |
060-3505 | Female 3/8” Ford | Included in Light Truck Kit # 200-3117 |
060-3605 | Female 1/2” Ford | Included in Light Truck Kit # 200-3117 |
060-3900 | Ford Female Quick Disconnect-5/16” | Included in Light Truck Kit # 200-3117 |
060-3901 | Ford Female Quick Disconnect-3/8” | Included in Light Truck Kit # 200-3117 |
060-3500 | Ford Male 3/8” | Included in Light Truck Kit # 200-3117 |
060-3600 | Male 1/2” | Included in Light Truck Kit # 200-3117 |
060-4200 | GM Male 5/16” metal | Included in Light Truck Kit # 200-3117 |
060-4300 | Ford/GM Male 3/8” | Included in Light Truck Kit # 200-3117 |
061-1550 | Open end-1/2” | Included in Light Truck Kit # 200-3117 |
062-2040 | Adapter-m 1/2” Chrysler, quick con | Included in Light Truck Kit # 200-3117 |
060-2402 | Banjo 14mm | Optional Adapters |
060-2740 | Bolt-banjo 14mm | Optional Adapters |
060-2741 | Washer 14mm | Optional Adapters |
060-2742 | Cap nut 14 mm | Optional Adapters |

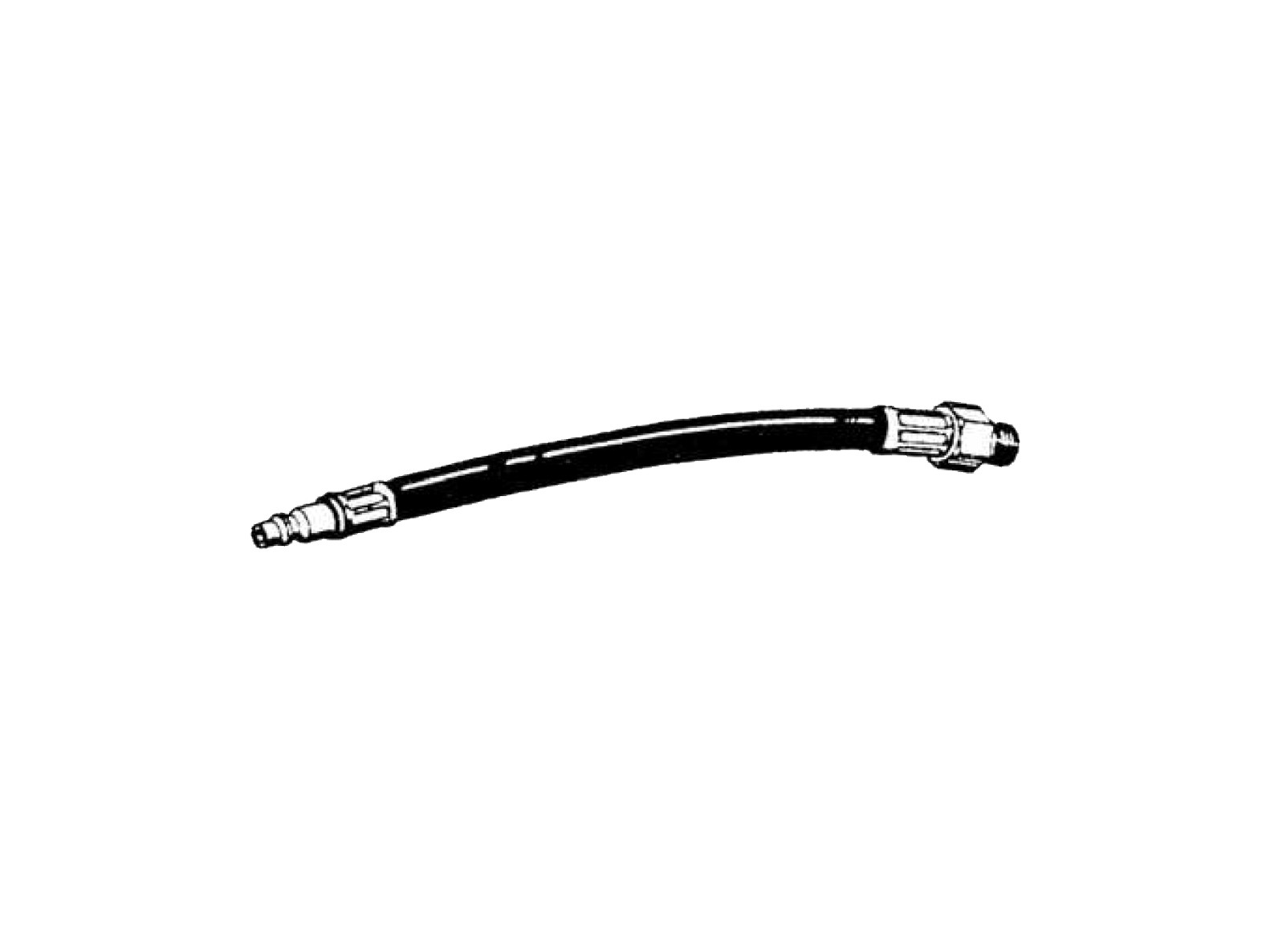

060-3200 | Male quick disconnect 1/4” | Optional Adapters |

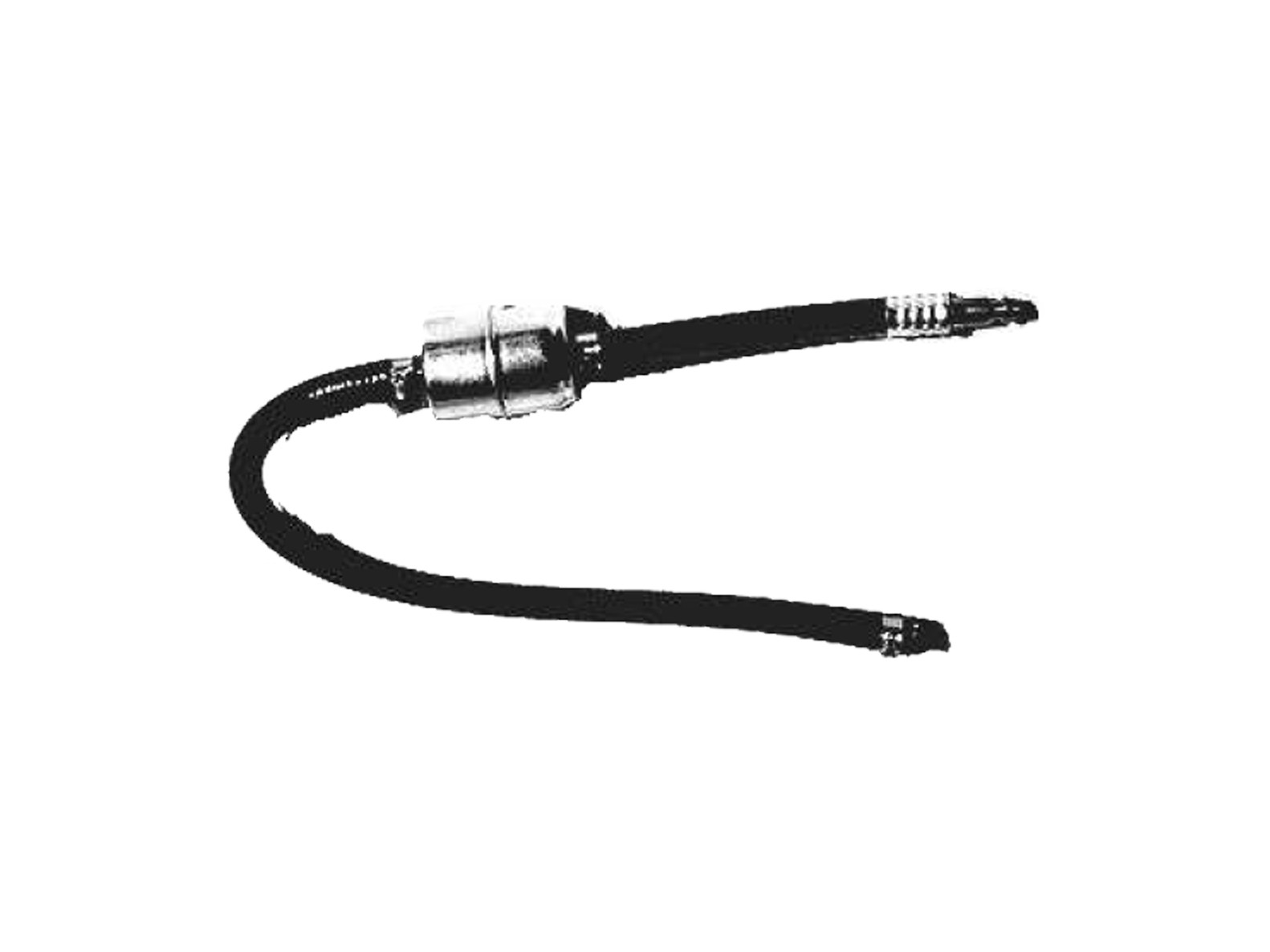

061-0001 | Fuel siphon | Optional Adapters |

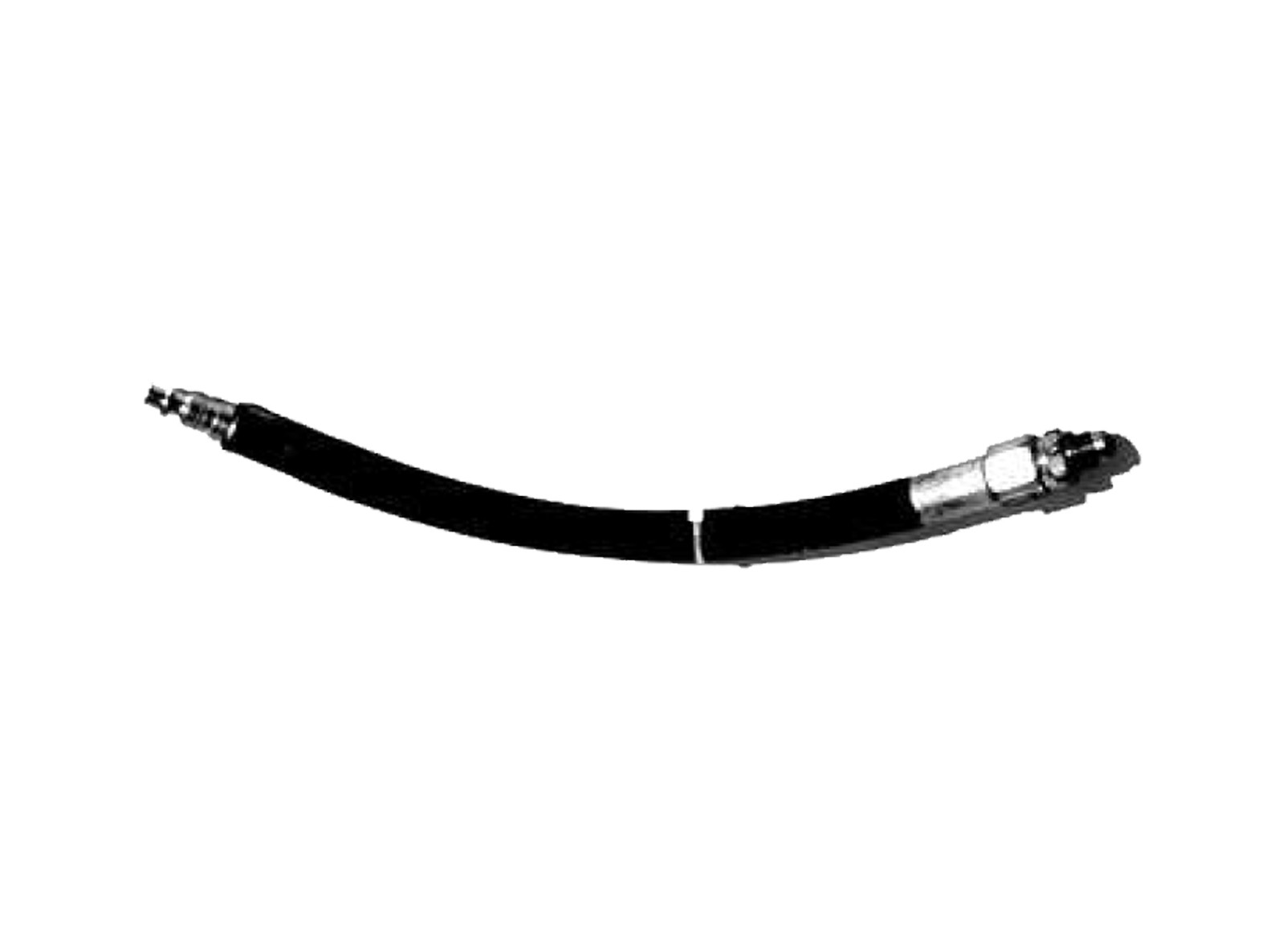

061-0004 | 45 flare male 1/4” #4 | Optional Adapters |
061-0005 | 45 flare male 5/16” #5 | Optional Adapters |
061-0006 | 45 flare male 3/8” #6 | Optional Adapters |
061-0008 | 45 flare male 1/2” #8 | Optional Adapters |
061-0010 | 45 flare male 5/8” #10 | Optional Adapters |
061-0016 | Female flare #6 JIC | Optional Adapters |
061-0026 | Male flare #6 JIC | Optional Adapters |
061-0505 | Coupler flare female #5 x #5 | Optional Adapters |

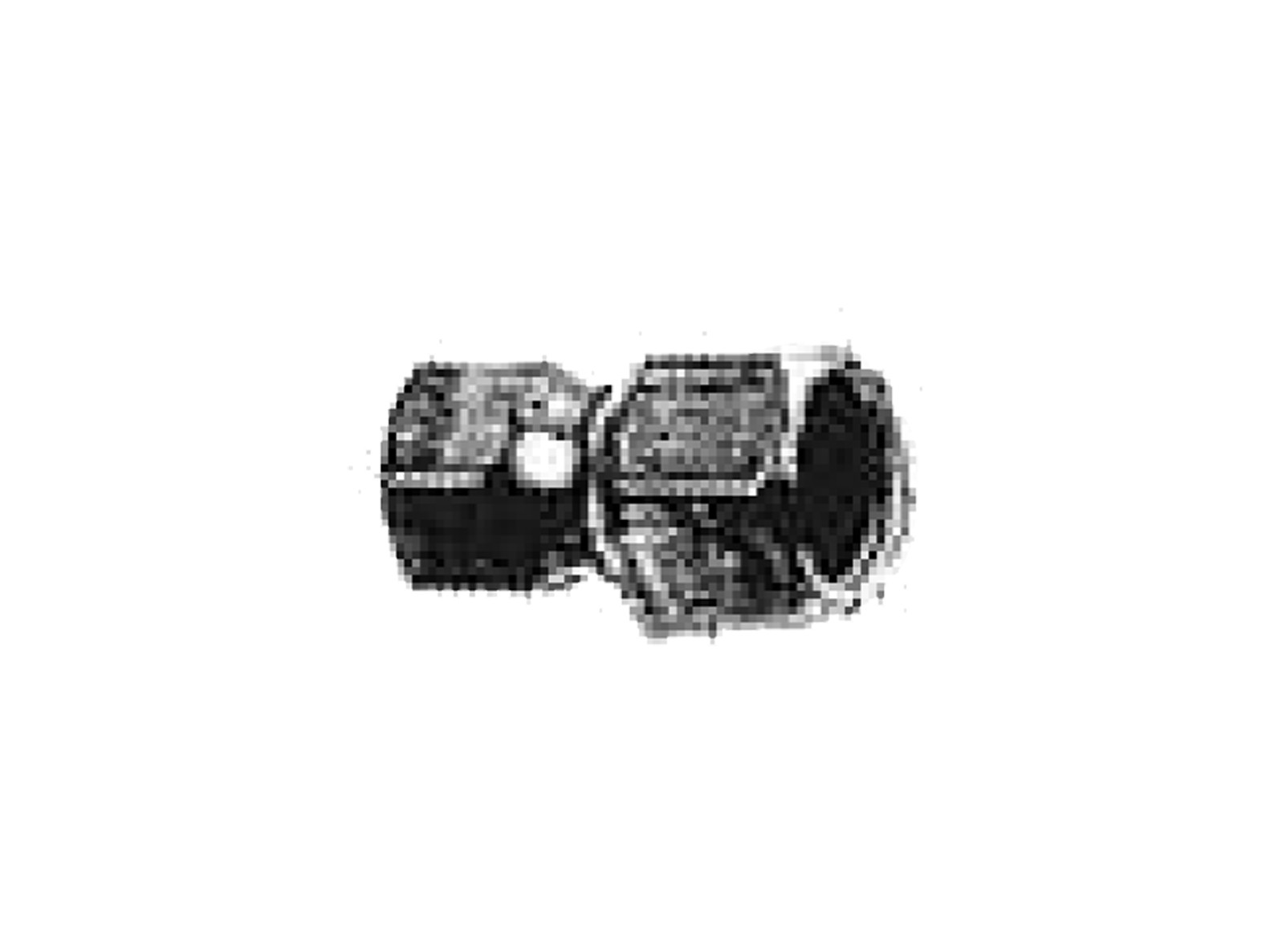

061-0604 | Coupler flare female #6 x #4 | Optional Adapters |
061-0605 | 45 Flare male #6 x #5 45 | Optional Adapters |
061-1008 | Coupler flare female #10 x #8 | Optional Adapters |
061-1210 | 45 flare male #12 X #10 | Optional Adapters |
061-1212 | Coupler flare female #12 x #12 | Optional Adapters |

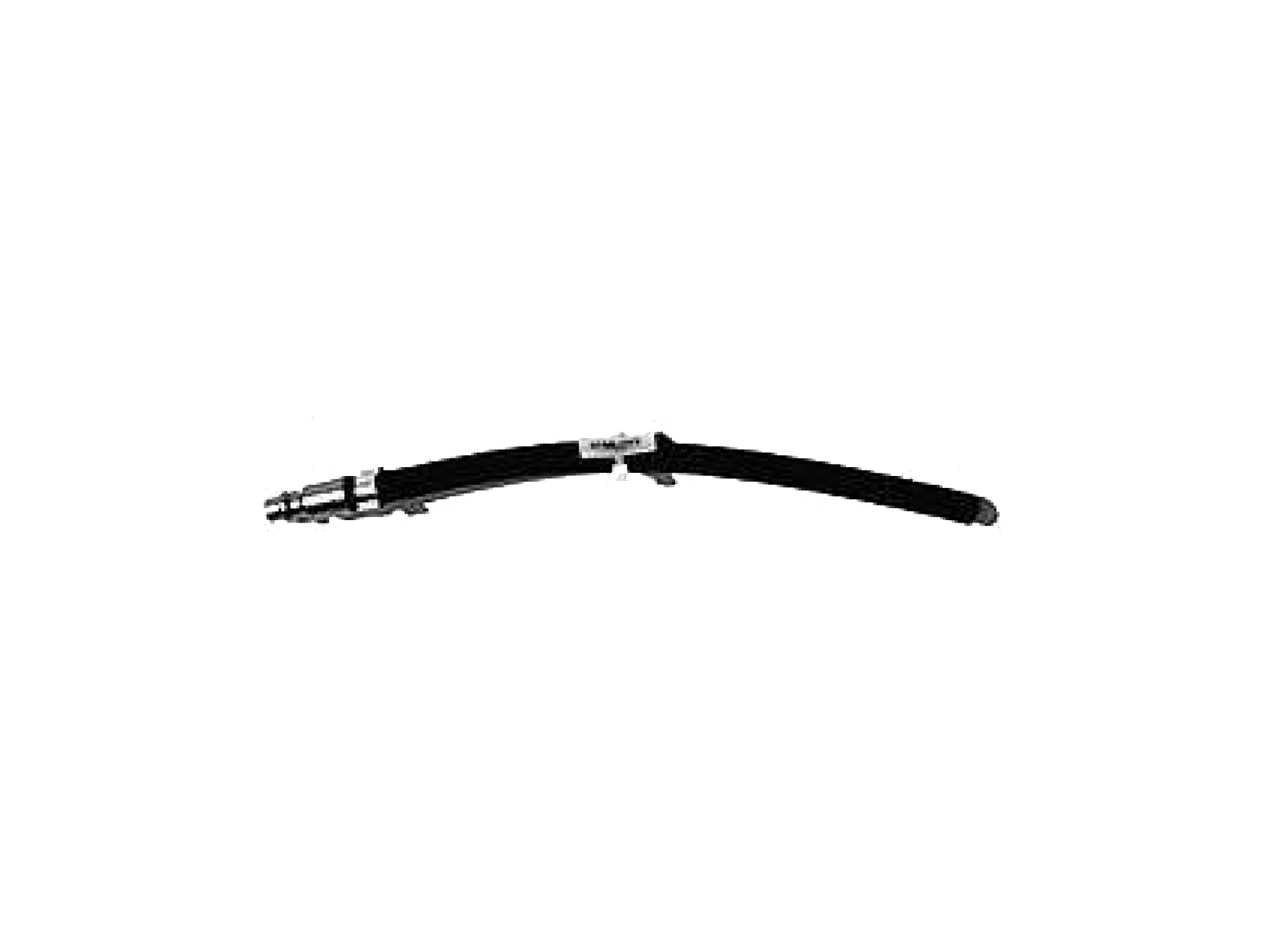

061-3510 | Open end 3/16” | Optional Adapters |
061-5500 | Conn 1/2” NAB NY | Optional Adapters |

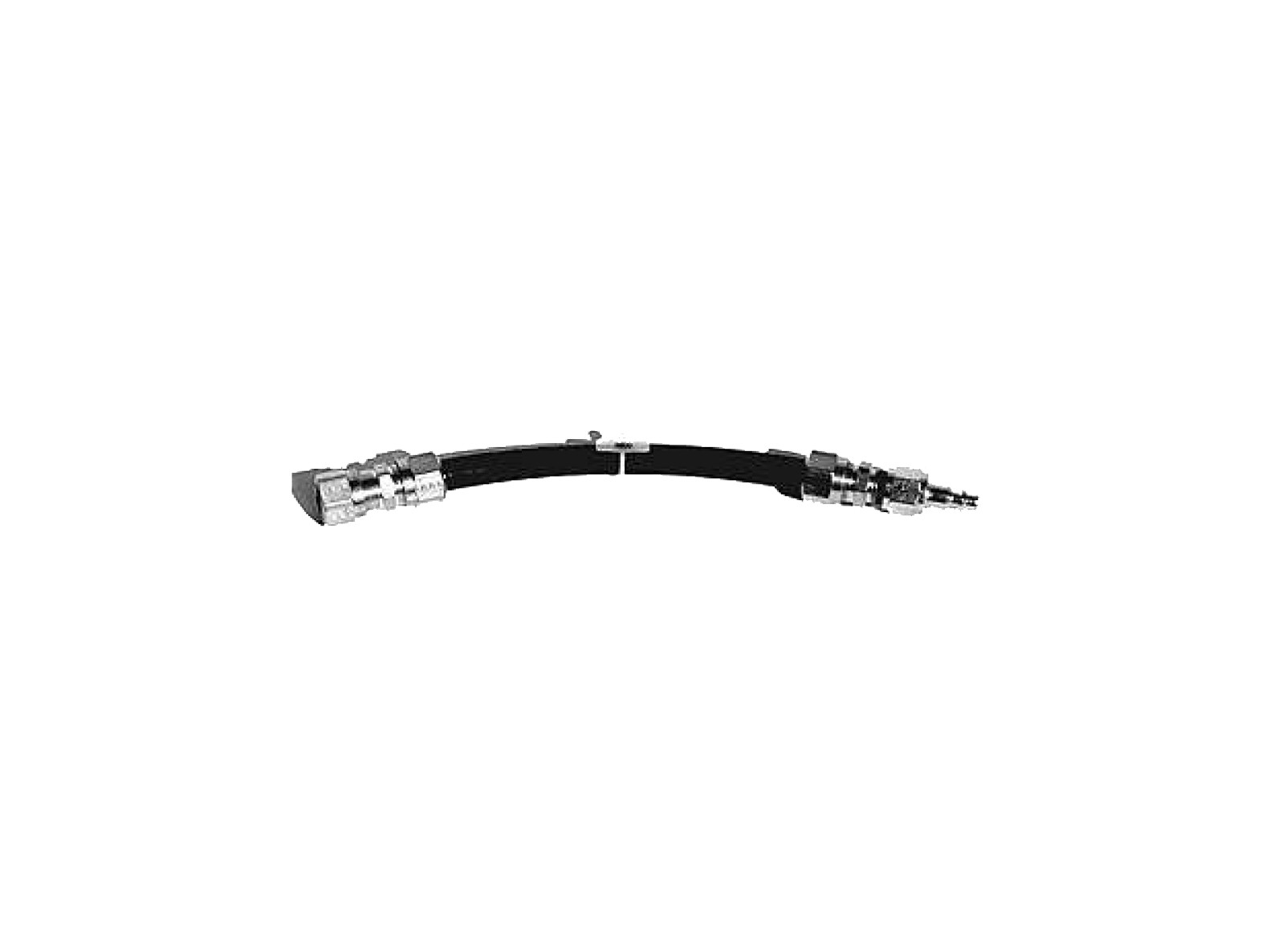

061-5800 | Conn 5/8” NAB NY | Optional Adapters |
060-0440 | Clamp hose, medium 7/32”-5/8” | Optional Adapters |
060-0450 | Clamp hose, large 7/16”-25/32” | Optional Adapters |
060-1000 | Tube male 1/4” | Optional Adapters |
060-1100 | Tube male 5/16” | Optional Adapters |
060-1200 | Tube male 3/8” | Optional Adapters |
060-1300 | Female 1/4” | Optional Adapters |
060-1400 | Female 5/16” | Optional Adapters |
060-1500 | Female 3/8” | Optional Adapters |
060-2501 | Female quick disconnect-loop w/quick discont from | Optional Adapters |
060-3200 | Male quick disconnect-1/4” | Optional Adapters |
060-4501 | loop for single line fuel system | Optional Adapters |

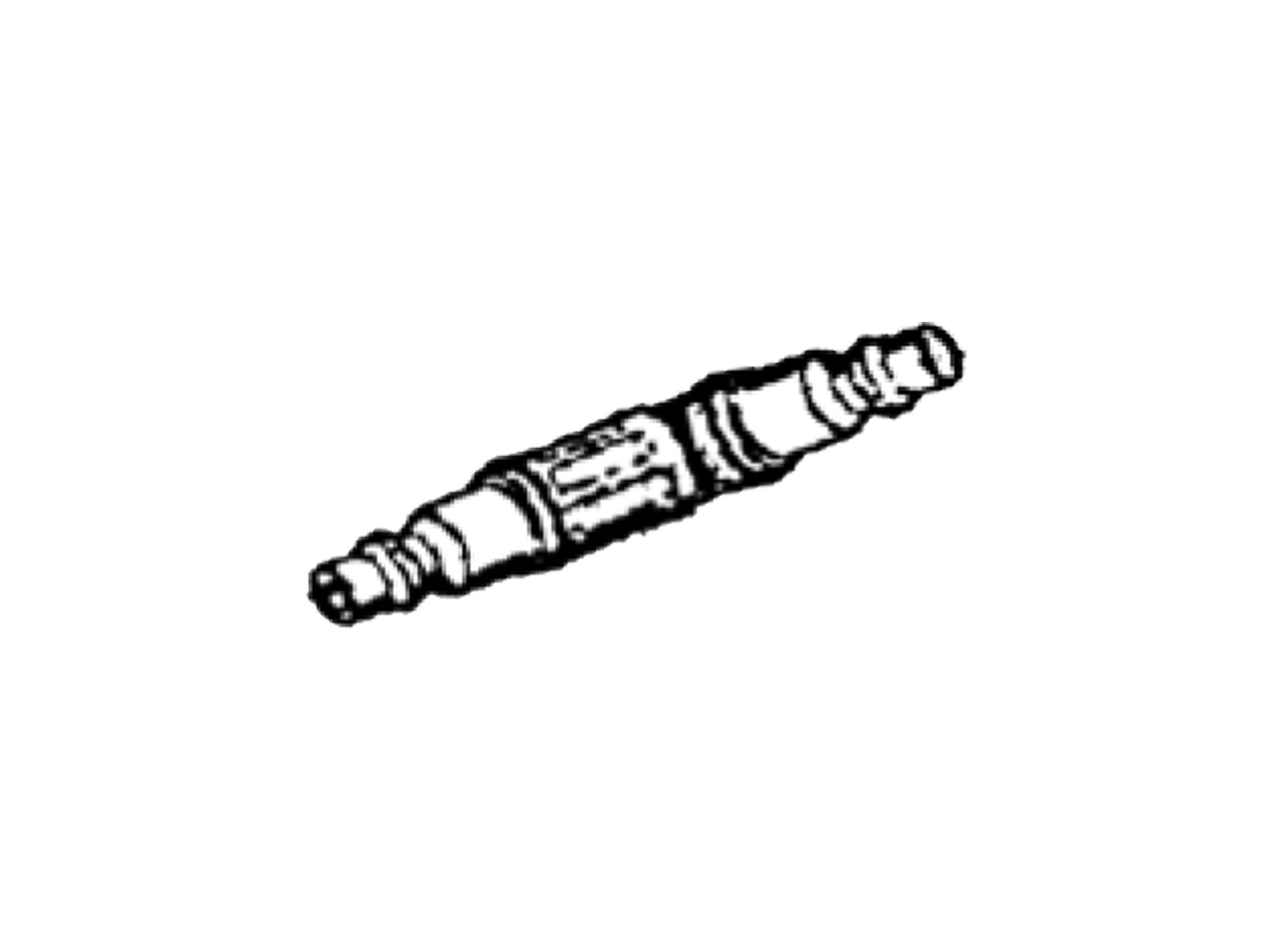

060-4700 | Prime adapter | Optional Adapters |

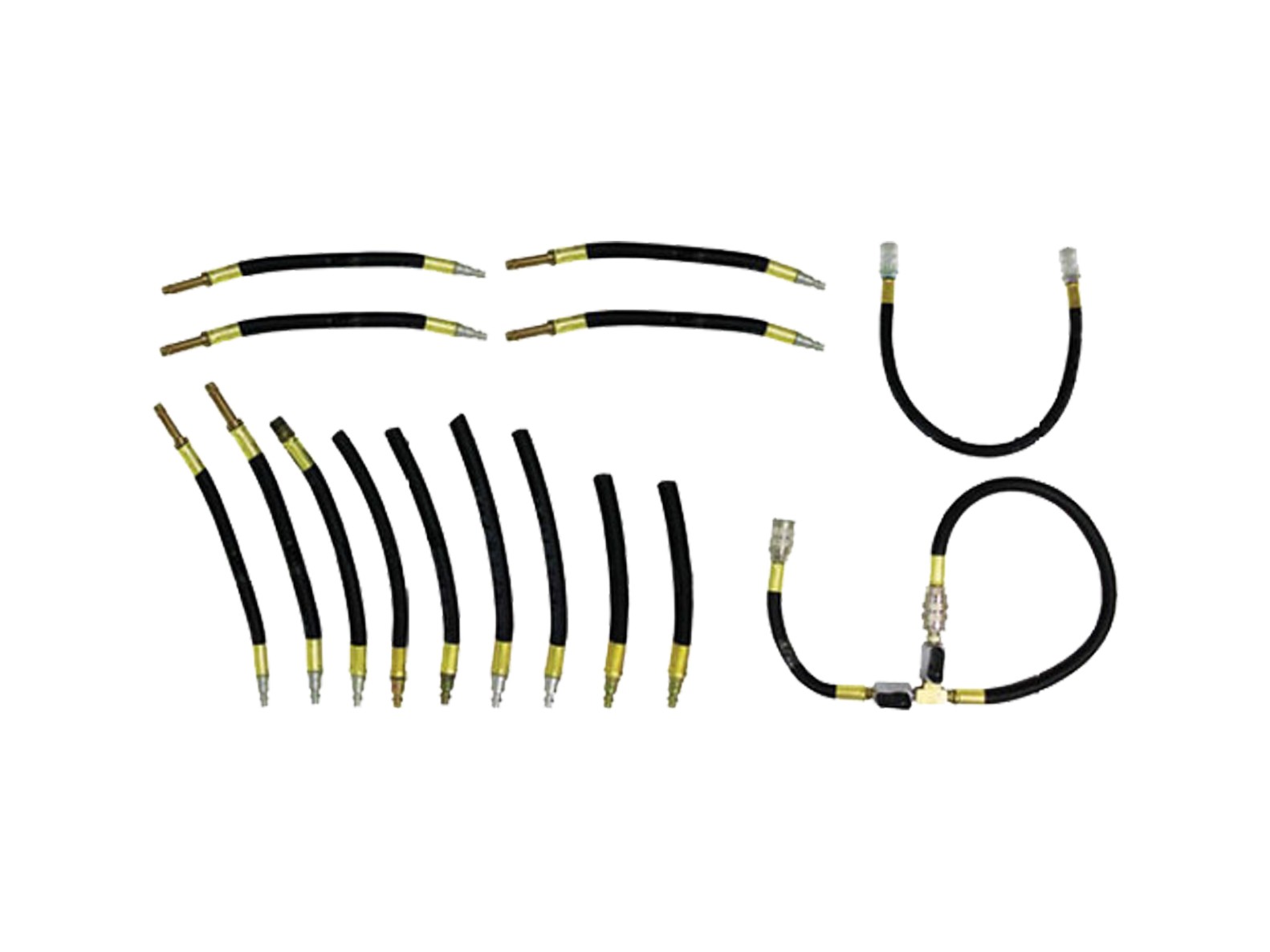

200-3021A | Kit, diesel (basic) - revised | Accessories |

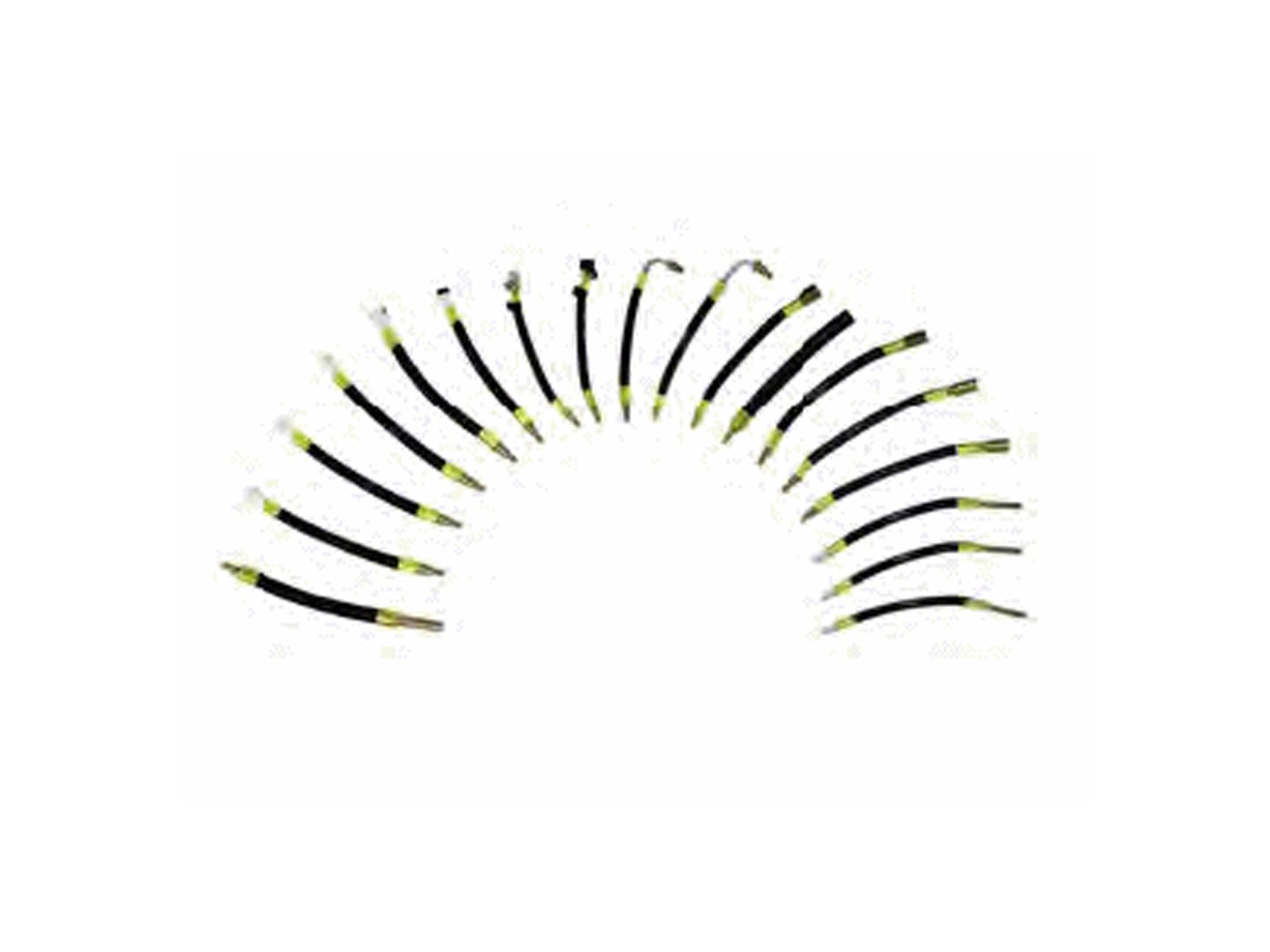

200-3117 | Kit, diesel light truck | Accessories |
